There is a small plastic drain pan sitting under each rear hatch lock pin, just above the taillight, and after 30-plus years most of them are cracked, brittle, or missing the drain tube entirely. When that drain pan fails, water that runs down the hatch and into the lock pocket has nowhere to go but the rear deck, where it sits against bare metal and quietly rusts your car from the inside. Replacing it is a 30-minute job that prevents a very expensive problem.
Before You Start
Be honest about what this is: it is a water-management part, not a structural one, and Porsche never wrote a glamorous service procedure for it. There is no published torque figure for the drain pan or its cover, which is fine, because everything here is thin plastic and sheet metal that you snug by feel, not crank down. The original covers came with a drain tube that ran water down and out through the bottom of the car. Most of those tubes are long gone, which is exactly why so many 944s have damp rear carpets and rust forming in the rear deck.
This is one of several water entry points on the 944, so set expectations. If your rear carpet is already soaked, fixing the drain pan stops new water coming through this path, but you should still check the hatch seal, the rear spoiler drain channels, and the rear wheel arch areas while you are back there.
Do this on a dry day with the hatch open and supported. Have a shop light handy. The pocket you are working in is dark and tucked behind trim.
What You're Replacing
This is the rear hatch lock pin drain, also called the hatch drain pan, hatch drain cover, hatch pin seat drain, or the rear pin receiver / latch lock cover. It is the plastic piece that caps the lock pocket below the hatch latch pin and channels water to a drain tube. The original part is brittle ABS-type plastic that warps and cracks with age and heat, and once it cracks it stops draining.
You might hear it called a few different things: the hatch drain pan, the lock pin drain cover, the hatch pin seat cover, the rear deck drain tray, or just "that little plastic cup under the hatch lock that fell apart." They all point to the same area.
| Component | OEM Part Number | Notes |
|---|---|---|
| Rear Hatch Drain Pan | 477.827.541 | The reproduction part covered by this guide. Porsche's factory parts catalog lists it as the "water drip pan," and there is one per side, so buy two if you are doing both locks. |
| Rear Hatch Drain Hose | 477.827.547 | The 400 mm drain tube that carries water from the pan down and out the bottom. Often missing; also one per side. |
| Hatch Lock Sealing Ring | 477.827.529a | The sealing ring at the lock, commonly replaced at the same time. |
What this guide does NOT cover: the hatch glass-to-frame seal, the rubber hatch perimeter seal, and the rear spoiler drain channels. Those are separate leak sources with their own fixes. If you have a leak and the drain pan looks fine, start with the hatch seal.
What You'll Need
Parts
- Rear Hatch Drain Pan (OEM 477.827.541) for the 944 / 924S / 968
- Rear Hatch Drain Hose (OEM 477.827.547) if yours is cracked or missing
- A short length of correctly-sized rubber or vinyl tubing (the factory hose is about 400 mm) if you want to rebuild the drain run yourself, a common owner fix when the OEM tube is gone
Tools
| Tool | Use |
|---|---|
| 10 mm Wrench or Socket | The two nuts that hold the lock cover assembly. |
| 13 mm Wrench or Socket | Hatch latch pin alignment / seating, if you adjust the pins. |
| Flat-Blade Screwdriver | Releasing the clip on the ball socket and easing the cover off. |
| Trim Pliers or Needle-Nose Pliers | Working the hose and grommet in a tight pocket. |
| Shop Light | The lock pocket is dark and recessed. |
| Clean Dry Rags | Wiping out water and grit before reassembly. |
| Light Grease | A thin film helps the new pan and pin seat slide home. |
| Guitar String or Stiff Wire (Optional) | Clearing a clogged drain tube or routing the new one. |
Fitment Notes

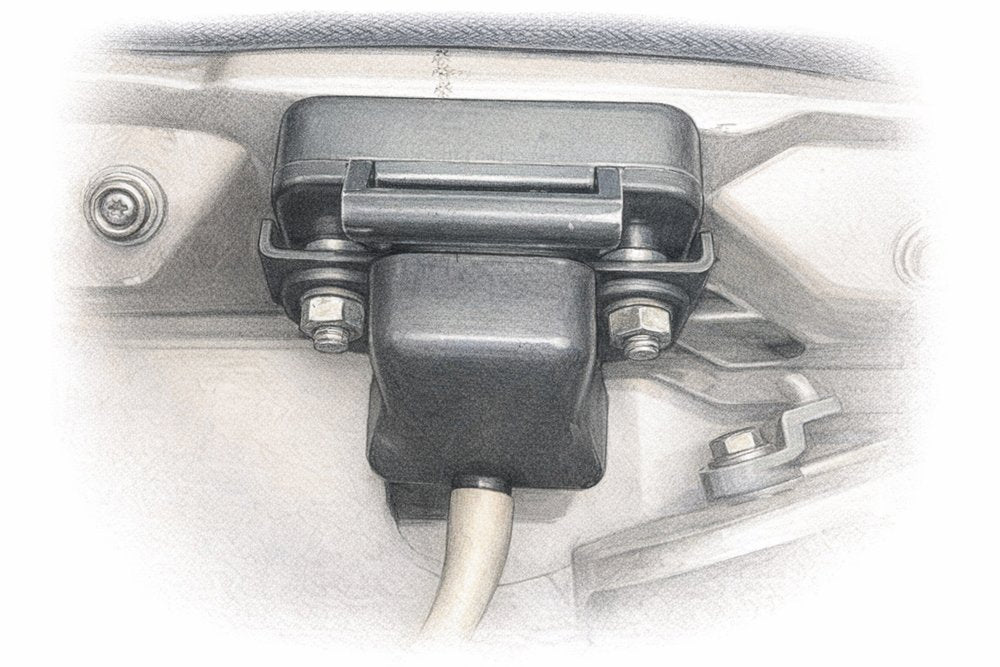

The hatch lock and its drain sit on the centerline of the rear deck, under the hatch latch, just above the license-plate and taillight area. Open the hatch and fold the rear carpet forward to expose it. The plastic cover with the white drain hose is what you are after.
This part is shared across the long 924/944/968 hatchback run. The 944 ran 1982-1991, the 924S 1986-1988, and the 968 1992-1995, and Porsche catalogues the 477.827.541 drain across 1984-1995. On the earliest 1982-1983 cars, confirm your existing pan matches the 477.827.541 shape before ordering, since early hatch hardware can differ slightly, so it is worth checking against your own car or a Porsche parts catalog first.
Note the orientation when the old one comes out. The drain outlet has to point down toward the drain tube, and the pan seats in a specific clocking so the lock pin lands cleanly. Take a photo before you remove anything.
Step 1: Open the Hatch and Expose the Lock
Open the rear hatch and prop it so it stays up on its own. Unsnap and fold the rear carpet forward to reveal the inner tail end of the rear deck. You are looking for the plastic cover sitting under the hatch lock with a white hose running off the bottom of it.
Step 2: Remove the Lock Cover Assembly
Using a 10 mm wrench, remove the two nuts that secure the lock cover. With the nuts off, slide the plastic cover off along with its white drain hose. Set the nuts somewhere you will not lose them.
WARNING: Support the hatch the whole time you work. A 944 rear hatch is heavy glass in an aluminum frame on gas struts, and tired struts can let it drop on your hands or head.
Step 3: Release the Old Drain Pan and Clean the Pocket
If your old drain pan is part of the cover that just came off, compare it directly to the new part now. If the drain is a separate seat down in the pocket, use a flat-blade screwdriver to open the clip on the black ball socket, then twist the lock mechanism to free it, and pull the rubber grommet so you can reach the seat.
Wipe the pocket out completely with a dry rag. Get the rust dust, leaf debris, and old grit out. If you find surface rust, this is the moment to treat it before you seal water back over it. A clean, dry pocket is the difference between this repair lasting and the rust just continuing under the new part.
Step 4: Check the Drain Hose and Clear the Drain Path
Before the new pan goes in, make sure water actually has somewhere to go. The original covers drained through a tube that ran down and out the bottom of the car, and most are missing or split. If yours is intact, run a guitar string or stiff wire down it and flush with a little water to confirm it is clear. If it is gone, fit a new drain hose (OEM 477.827.547) or build one from correctly-sized tubing routed down and out the existing drain hole in the rear.
This step is the whole point of the job. A new drain pan over a blocked or missing tube just relocates the puddle.
Step 5: Grease and Seat the New Drain Pan
Apply a light film of grease to both contact faces of the new drain pan to help it slide and seat. Set it into the pocket in the same orientation you photographed, with the drain outlet pointing down toward the tube. If your part includes a pin seat, align it so the relief faces the white arm of the lock, push the white arm to hold the lock open, and seat the part. A socket of roughly 13 mm makes a clean pusher to drive it down until it snaps into place. Do not force it crooked.
Step 6: Reconnect the Hose and Reinstall the Cover
Reconnect the drain hose to the pan or cover. If you removed the ball socket, reinstall it and make sure the clip engages. Slide the plastic cover back over the assembly and thread the two 10 mm nuts. Snug them by hand-tight feel, then a light wrench touch. This is thin plastic and sheet metal, so do not crank on it.
Step 7: Test the Drain and Reset the Carpet
Pour a small amount of water into the pan and watch it run through the pan, into the hose, and out the bottom of the car. If it drains cleanly, you are done. If it backs up, pull the hose and clear it again. Once you confirm flow, fold the rear carpet back into place and re-snap it. Close and latch the hatch and confirm the pin engages without binding.
Troubleshooting
Water still pools in the rear deck after the new pan is in. The drain tube is almost certainly blocked or missing downstream. Pull the hose, run a wire through, flush it, and confirm it exits the bottom of the car. The pan cannot drain water the tube will not carry.
The rear carpet is wet but the drain pan looks dry. Your leak is coming from somewhere else. The usual suspects are the hatch glass-to-frame seal, the rubber perimeter seal, the rear spoiler drain channels, or rust at the rear wheel arches letting water into the cabin. Work those leak points separately.
The lock pin binds or will not latch cleanly after reassembly. The pan or pin seat may be clocked wrong, or the hatch latch needs a small adjustment. Re-seat the part in the correct orientation first. If the hatch still binds or sits loose, the two threaded posts on the hatch set how tightly it latches: loosen the lock nut beside each post, turn the post in or out a little, retighten the lock nut, and don't over-tighten or the hatch gets hard to work. A little grease on the latch mechanism on each side helps too.
The new pan feels loose under the cover. Check that it snapped fully home and that both 10 mm nuts are evenly snug. Do not over-tighten to "fix" looseness, you will crack plastic. Re-seat it instead.
A Note on NLA Parts
The original drain pan and its tube were never built to outlast the car. They are brittle plastic in a hot, wet, sunbaked corner of the rear deck, so they crack, warp, and shed their drain tubes, and the owner usually never notices until the rear carpet is soaked and the rear deck has started to rust. Porsche still lists the area in the catalog, but supply of a clean, uncracked original is unreliable and prices for genuine pieces wander all over the place.
That is the gap this part fills. Our reproduction rear hatch drain pan in durable ABS goes back to the OEM mounting points, channels water to the tube the way the factory intended, and keeps it off the bare metal. The real win here is not the plastic part, it is the rust you never get because the water finally has somewhere to go.
Wrap-Up
You just closed off one of the most overlooked water-entry points on the 944 and gave the rear deck a fighting chance against rust. While you have the carpet up, take five minutes to check the hatch seal and the spoiler drain channels so you are not back in here next month. Clean, dry, and draining is the goal, and now you have it.
