BMW E36 3-Series Steering Wheel Retrofit Guide
Difficulty: Intermediate | Time: 1-2 hours | Applies to: BMW E36 3-Series (1992-1999)
The original E36 steering wheel was fine in 1995. Now it's cracked, sun-faded, and that blank airbag cover without the BMW roundel just looks dated. Later E36s came with sport wheels featuring the iconic roundel badge, slimmer profile, and cleaner aesthetics. The good news: these newer wheels bolt right in with some minor wiring work.
Common E36 Steering Wheel Options
-
Standard 4-Spoke
Original equipment on early E36s. No roundel badge.
-

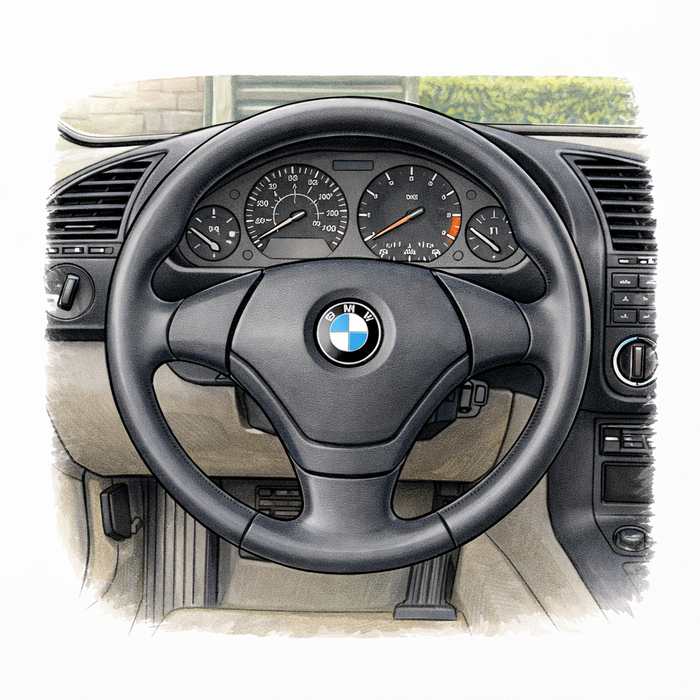

Sport 3-Spoke
The upgrade target. Roundel badge, slimmer design.
-

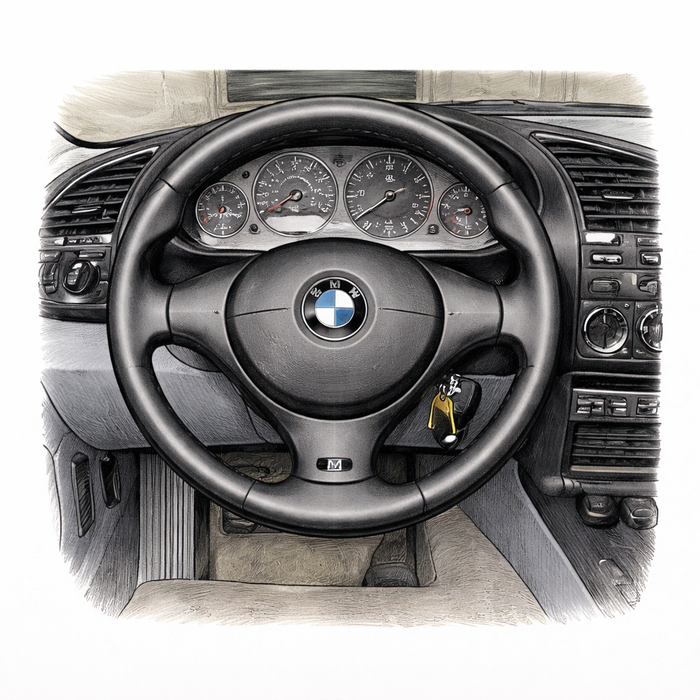

M3 3-Spoke
Features M badge on bottom spoke. May require wiring variation.
Before You Start: Model Year Matters
BMW changed the slip ring multiple times during E36 production:
- 1992-1993: Splice airbag + horn wires
- 1994 (non-M3): Splice horn wire only
- 1995+ (non-M3): Plug and play
- All M3s (pre-3/98): Splice horn wire only
- M3 (3/98+): Plug and play
The goal: Use the newer '111 slip ring (P/N 32 34 1 162 111) for all installations.
What You'll Need
Tools: T-30 Torx bit, socket set with breaker bar, wire strippers, soldering iron + solder, heat shrink tubing, multimeter
Parts: Sport wheel with airbag ($200-300 used), Slip ring P/N 32 34 1 162 111 (~$175), Column switch bracket P/N 32 31 1 162 088 (~$4)
⚠️ Safety Warning
You're working with an airbag. Respect it.
- Disconnect the negative battery terminal
- Wait at least 10 minutes for capacitors to discharge
- Never point the airbag face toward yourself
- Store removed airbag face-up on a soft surface
- Handle wiring carefully

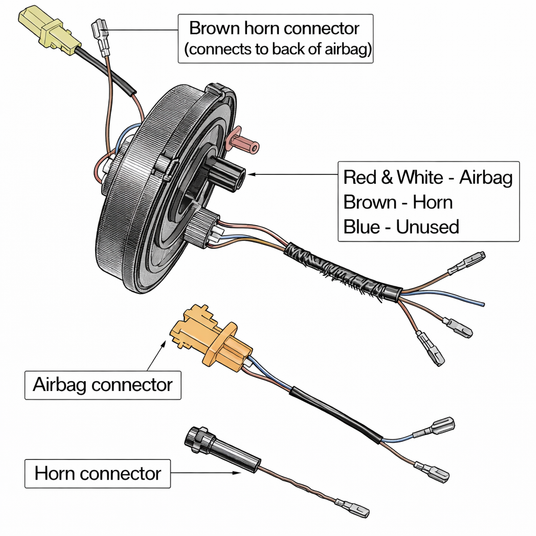

Understanding the Slip Ring
The slip ring is the rotating connector that allows airbag and horn signals to pass through the steering wheel.
Wire colors: Red & White = Airbag, Brown = Horn, Blue = Unused.
A used slip ring that turns more than 2.5 revolutions off-center (or keeps turning freely) is defective.
Procedure (1995+ Non-M3)
Step 1: Disconnect battery and wait 10 minutes.
Step 2: Remove steering column trim. Locate the orange airbag connector under the column and unplug it.
Step 3: Remove airbag. Two T-30 Torx screws at 3 and 9 o'clock. Pull forward, disconnect yellow airbag plug and horn connector.
Step 4: Align wheels straight, remove center bolt with breaker bar, pull wheel off.
Step 5: Transfer slip ring to new wheel (or install new slip ring).
Step 6: Install new wheel, reconnect airbag and horn plugs, secure airbag with T-30 screws.
Step 7: Reinstall trim, reconnect battery, verify SRS light goes off and horn works.

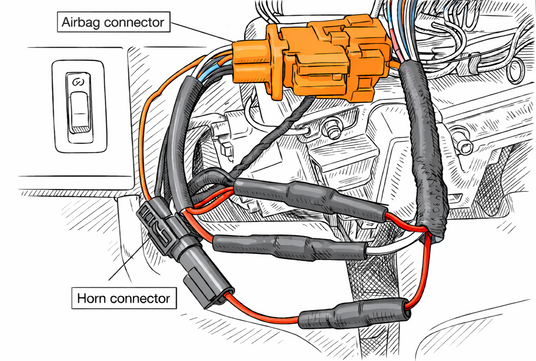

Wiring (1992-1994 / M3)
For early cars, you'll need to splice wires:
- White → Blue (airbag)
- Red → Brown (airbag)
- Brown → Brown (horn)
- Blue → Unused
Solder connections and cover with heat shrink. Replace column switch bracket with P/N 32 31 1 162 088.

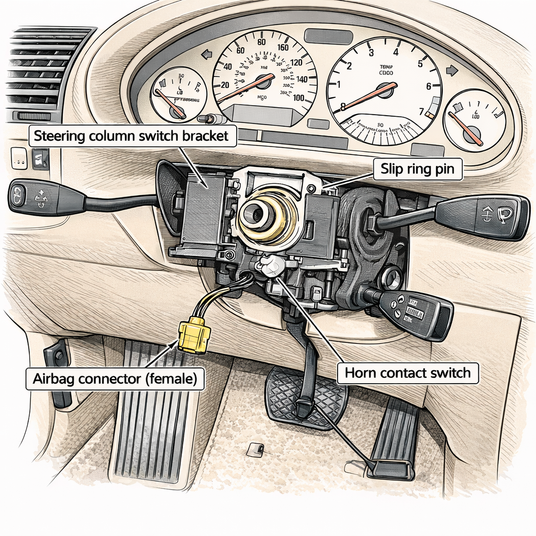

Steering Column Components
Key components to identify: steering column switch bracket, slip ring pin location, airbag connector (female), and horn contact switch.
The new slip ring must lock into the pin on the steering column switch bracket for proper horn operation.

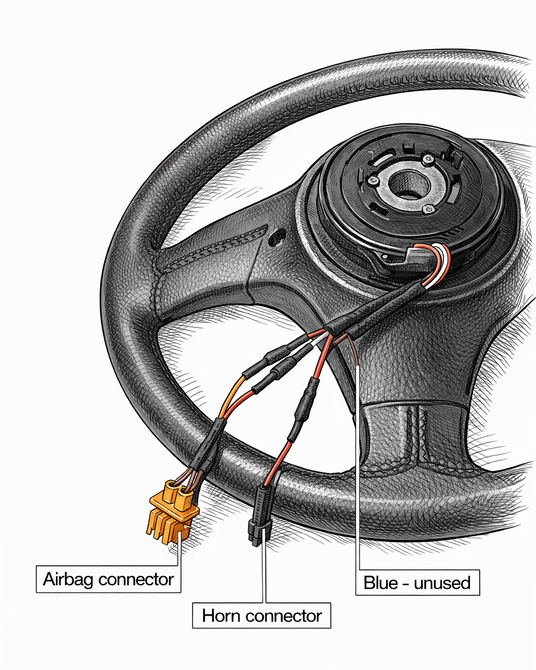

New Wheel Connections
Connect airbag and horn plugs to the back of the new wheel before securing the airbag.
Note: The airbag connector can disconnect itself when pushing the airbag into position if wires press against the plastic warning label. Route wires clear of the label.
Troubleshooting
- SRS Light Stays On: Check airbag connections, verify wire splices are secure
- Horn Doesn't Work: Check horn wire splice, verify slip ring locks into bracket pin
- Wheel Off-Center: Didn't align wheels straight before removal—reinstall on correct spline
Avoid E46 wheels—two-stage airbag system is incompatible.
