The fuel filter on a BMW E36 is one of those parts nobody thinks about until the car starts running like garbage. It sits in the line between the tank and the engine, catches rust and crud before it reaches your injectors, and BMW wanted it changed every Inspection II. On a 25-plus-year-old car, odds are decent yours has never been touched. A clogged filter shows up as hard starting, hesitation under load, and a car that stumbles when you ask it for fuel. Replacing it is straightforward, but it is a fuel-system job, so you do it with the right respect for the stuff coming out of the lines.
Before You Start
Here is what the factory manual actually says, and where it goes quiet. The factory manual lists fuel filter replacement under Inspection II maintenance, which BMW schedules at a maximum of 30,000 miles or 24 months. Most enthusiasts run it on a similar interval, roughly every 30,000 to 40,000 miles, and there is no harm in doing it sooner on a car with unknown history or a rusty tank.
The manual gives you the procedure and the warnings, but it does not give a torque spec for the cover bolts or the saddle-clamp nut. That is because these are not torque-critical fasteners. They get snugged by hand, not cranked. We will flag the spots where the factory documentation simply does not provide a number rather than make one up.
One real decision before you crawl under: the filter location is not the same on every E36. The factory manual spells out three cases.
- Early 4-cylinder cars (M42 / M44): filter is mounted under the car on the left front bulkhead.
- Early 6-cylinder cars (M50): filter is mounted to the front left motor mount in the engine compartment.
- Later cars (most M52 / S52 and later 6-cylinder): filter is under the center of the car, approximately under the driver's seat, with a protective cover over it that has to come off first.
Look under your car and find yours before you order anything or buy ramps. The vast majority of E36s you will meet are the later under-center layout.
What You're Replacing

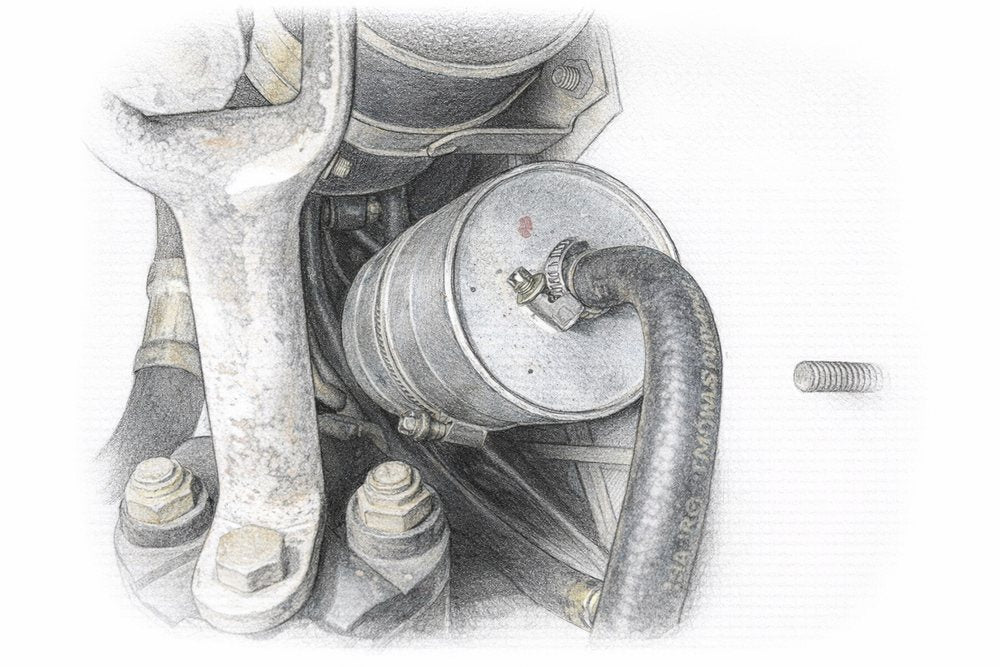

You are replacing the in-line fuel filter, a sealed metal canister that the fuel flows through on its way from the tank to the engine. People call it the fuel filter, the gas filter, the inline filter, or "that silver can under the car." On the E36 it is a serviceable, replaceable part, not a lifetime item.
Important point that trips people up: on the E36, the fuel filter and the fuel pressure regulator are two separate parts. The pressure regulator is a different component (BMW 13531436110) and it is not changed when you change the filter. Some later BMW chassis and aftermarket combo units integrate a regulator into the filter body, but the standard E36 in-line filter is filter-only. Do not let a parts-store "fuel filter with regulator" listing confuse your order.
| Component | OEM part no. | Notes |
|---|---|---|
| Fuel filter (in-line) | 13 32 1 740 985 | The widely-fitting E36 filter: 318i / 318is / 318ti / 323i / 325i / 328i / M3, both 4- and 6-cylinder (also fits Z3, E34, E39). Made by Mahle, Mann, Hengst, Bosch. |
| Fuel pressure regulator | 13 53 1 436 110 | A SEPARATE part, NOT changed with the filter. Listed only so you do not order the wrong thing. |
| Hose clamps (worm-gear) | n/a | The factory manual calls for new clamps. Buy two, sized to the filter hoses. |
The E36 fuel filter is 13 32 1 740 985 across essentially the whole run, but BMW superseded the number over the years and a few early build dates differ, so confirm yours against RealOEM or FCP Euro by VIN before ordering. The filter and the pressure regulator are different parts, do not buy a "filter with regulator" combo for a standard E36.
What this guide does NOT cover: the in-tank fuel pump and level sender (a separate job under the rear seat), the fuel pressure regulator, and fuel injectors. If your car has a fuel-delivery problem and a fresh filter does not fix it, those are your next suspects.
What You'll Need
Parts
- Fuel Filter (OEM 13321740985, or your VIN-correct number) for the E36
- Two new worm-gear hose clamps, sized to the filter inlet/outlet hoses (the manual calls for new clamps)
- Optional: a few inches of correct-size fuel-injection hose if your old hoses are cracked or hardened Tools
| Tool | Use |
|---|---|
| Floor Jack and Jack Stands (or Ramps) | The under-center filter needs the car safely in the air. |
| Wheel Chocks | Chock the wheels staying on the ground. Always. |
| Socket Set (10 mm Typical) | The four protective-cover bolts and the saddle-clamp nut. |
| Flat-Blade Screwdriver or Nut Driver | Loosening the worm-gear hose clamps. |
| Two Pairs of Hose Clamp Pliers or Vise-Grips | To pinch the inlet and outlet hoses and cut down fuel spray. |
| Catch Pan and Rags | Fuel will come out. Plan for it. |
| Safety Glasses and Nitrile Gloves | Fuel in the eyes or on skin is no joke. |
| Fire Extinguisher | Keep it within arm's reach. Non-negotiable on a fuel job. |
| Drain Container with Lid | To catch and inspect the old fuel (check for rust and water). |
Fitment Notes
Three things to get right before you remove anything.
Find your filter first. Re-read the three location cases above. Early 4-cylinder is on the left front bulkhead under the car; early 6-cylinder is up on the front left motor mount in the engine bay; later cars are under the center floor near the driver's seat under a cover. Confirm yours so you are jacking up and working in the right place.
Note the flow arrow. The filter canister has an arrow stamped on it showing fuel-flow direction, and it has to go back in pointing the right way. The arrow points toward the engine, which on the later under-center cars means it runs from the passenger side toward the driver side. Mark the direction before you pull the old one so you have a reference.
Confirm part number against your VIN. There is more than one filter number across the E36 run. Plug your VIN into RealOEM and confirm before you order so you are not making a second parts run.
Step 1: Depressurize the Fuel System
This is the step people skip and regret. The E36 fuel system holds residual pressure even with the engine off, so before you open any line you bleed that pressure off.
Pull the fuel pump fuse, then start the engine and let it run until it stalls from fuel starvation. Crank it once or twice more to confirm it will not catch. That drops the system pressure.
The E36 fuse box is in the engine bay, at the left rear of the compartment under a cover, with the fuse layout printed on the inside of that cover (your owner's manual has it too). The fuel-pump fuse is commonly position 18 on 1992 to 1996 cars and position 41 on 1996-and-later cars, but the position moved around over the run and by engine, so confirm it against the diagram on your cover before you pull it.
WARNING: Even after this, the line is not bone-dry. Fuel will still be expelled when you open the filter connections. The factory manual is blunt about it: fuel will come out, do not smoke, and do not work near heaters or other fire hazards. Keep a fire extinguisher handy.
Step 2: Disconnect the Battery
With the pump fuse already out, disconnect the battery negative (-) cable. The battery on the E36 is in the trunk, right rear. Removing the ground kills any chance of a spark near fuel vapor.
Step 3: Raise the Car and Access the Filter
Chock the wheels that stay down, then jack up and support the car on stands at the factory jack points. Never rely on the jack alone under a car you are going to be lying beneath.
On the later under-center cars, locate the protective metal cover over the filter near the driver's-seat floor area and remove its bolts (four bolts on the typical later setup) so you can see the filter and its lines. On early 4-cylinder cars the filter is exposed on the left front bulkhead under the car; on early 6-cylinder cars it is in the engine bay on the front left motor mount and you may not need to lift the car at all.
Step 4: Clean Around the Connections
Before you loosen anything, wipe down around the filter inlet and outlet fittings. The manual specifically calls for cleaning thoroughly around the filter connections before removing them so you do not push grit into the open lines.
Step 5: Clamp the Hoses and Position Your Catch Pan
Use hose-clamp pliers or vise-grips to pinch the inlet and outlet hoses closed on either side of the filter. This is the single best thing you can do to keep fuel from spraying and to limit the drain-down. Slide your catch pan directly under the filter, and try not to position your face directly beneath the fittings when you crack them loose.
NOTE: The manual suggests draining the filter from the inlet side into a container and inspecting the drained fuel for rust, moisture, and contamination. If you see rust or water, that is a sign your tank or pickup needs attention beyond just the filter.
Step 6: Loosen the Saddle Clamp
The filter sits in a center clamping bracket, usually a saddle clamp held by a single nut. Loosen that nut and free the filter from the bracket. On some cars the clamp will only partly swing clear because other lines run through the same area, which is normal.
Step 7: Remove the Old Filter
Loosen the two worm-gear hose clamps, one on each end of the filter, and work the hoses off the filter spigots. Pull the hoses slowly and let the residual fuel drain into your pan. Lift the old filter out. Note (again) which way the flow arrow was pointing as it comes out.
Step 8: Install the New Filter
Set the new filter into the bracket with the flow arrow pointing the correct direction, toward the engine. Double-check the arrow against the orientation you noted in Step 7 and the Fitment Notes. Slide the inlet and outlet hoses fully onto the filter spigots.
CAUTION: Getting the arrow backward is the classic E36 fuel-filter mistake. A backward filter will run the car poorly or not at all, and you do not want to find that out after everything is buttoned up. Confirm the arrow now.
Step 9: Fit New Hose Clamps
Install new worm-gear hose clamps on both connections. The factory manual specifically calls for new clamps, not the old reused ones, because old clamps lose their grip and weep fuel. Position each clamp over the spigot barb and snug it down firmly, enough to seal without crushing the hose.
Re-snug the saddle-clamp nut to hold the filter securely in the bracket.
Step 10: Pressurize, Check for Leaks, Reassemble
Reinstall the fuel pump fuse and reconnect the battery negative cable. Before you start the engine, turn the ignition to the ON position (do not crank) for a few seconds and listen for the pump to run, then turn it off and back on a couple of times to prime the system and build pressure. Get under the car and inspect both filter connections for any sign of weeping fuel.
Once you have confirmed no leaks with the pump primed, start the engine and let it idle. Inspect the connections one more time with the engine running and fuel under full pressure. If both ends are dry, reinstall the protective cover (and its four bolts), lower the car, and you are done.
Troubleshooting
Car will not start, or starts then stalls, right after the swap. First thing to check is the flow arrow. A filter installed backward is the number-one cause of a no-start after a fuel-filter job on these cars. Get back under it and confirm the arrow points toward the engine.
You smell fuel or see a wet spot after the job. A connection is weeping. The usual culprit is a reused or under-tightened hose clamp, which is exactly why the manual tells you to use new clamps. Re-check both clamps and the spigot seating. If a hose end is cracked or hardened, replace that short section of hose.
Hard starting and hesitation did not fully go away. A clogged filter is one cause of poor fuel delivery, but it is not the only one. If a fresh filter only partly helped, the fuel pump, the pressure regulator, or a restricted line may be involved. The factory manual covers fuel delivery testing in its fuel tank and pump section.
The drained old fuel had rust or water in it. That points upstream, at the tank or the in-tank pickup. A new filter will catch debris for a while, but if the tank is rusting you will clog filters repeatedly until the tank is addressed.
A Note on Interval and Why It Matters
BMW filed fuel-filter replacement under Inspection II, max 30,000 miles or 24 months. On a car that old, "when did the last owner do it?" usually has no good answer, so treat an unknown-history E36 as overdue. A cheap filter is a lot less painful than chasing a drivability gremlin or, worse, sending tank debris into your injectors. It is also routine to replace the filter any time the in-tank fuel pump is serviced. While you are under there, glance at the fuel lines and the protective cover hardware for rust, since this is a part of the car most people never look at.
Wrap-Up
That is a fresh fuel filter on your E36. You restored clean fuel delivery, got eyes on the condition of your old fuel and lines, and confirmed there are no leaks under pressure. While you are working in the interior and underbody of an old 3-Series, it is a good time to take stock of the brittle plastic trim that has not survived three decades as well as the mechanicals, and that is exactly the gap Treedy Labs fills.
