Difficulty: Intermediate | Time: 2 to 4 hours | Applies to: BMW E36 (1992-1999). The mount and part number vary by engine, see Identify Your Engine below.
Clunk on startup. A shudder through the shifter at idle. Vibration that wasn't there last year, and a feeling the engine is moving more than it should when you get on the throttle. That's a collapsing motor mount. The good news is the parts are cheap and the job is a rite of passage. Do both sides at once, because if one is gone the other isn't far behind.
What Motor Mounts Do and Why They Fail
The factory calls these engine mounts. They bolt the engine down to the front suspension crossmember, one on each side, and their job is to isolate the engine's vibration from the chassis.

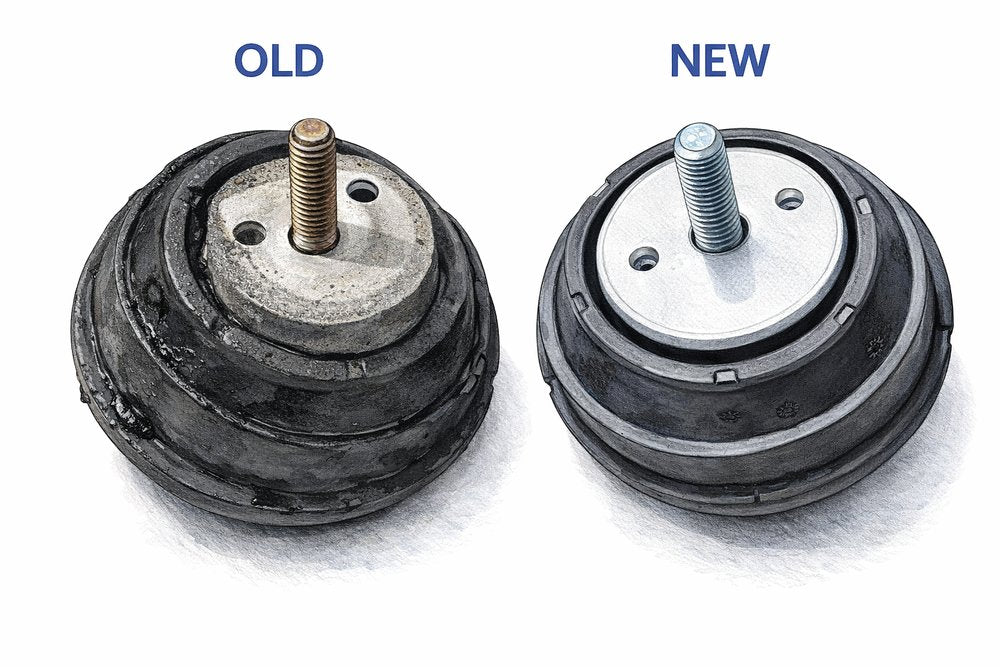

Here's the part most people get wrong: every OEM E36 mount is hydraulic, fluid-filled, including the four-cylinder. They don't just crack like a solid rubber puck. They fail by leaking their fluid out and going soft, and you can usually see it, a fresh oily film weeping down the mount when you look from below. So a mount can be shot without an obvious tear. Heavy idle vibration, a clunk as you go on and off the throttle, and that visible fluid weep are the tells.
Don't put it off on a six-cylinder car. A fully collapsed mount lets the engine sag far enough that the cooling fan can contact the fan shroud and shatter the blades. What starts as a vibration turns into a cooling-system repair.
Identify Your Engine and the Right Mount
This is the step the old guides skip. There is no single E36 motor mount, the part number splits three ways by engine. All of them are hydraulic, and all are symmetric, meaning one part number fits the left or the right side, and you replace them as a pair.
| Your engine | Cars | Engine mount PN (qty 2) |
|---|---|---|
| Four-cylinder M42 / M44 | 318i, 318is, 318ic, 318ti | 11 81 1 141 377 |
| Six-cylinder non-M, M50 / M52 | 323i, 325i, 328i | 22 11 6 779 970 |
| M3, S50 / S52 | M3 | 11 81 2 283 798 (older 11 81 2 228 298) |
A couple of notes that save a wrong order:
- The six-cylinder number 22 11 6 779 970 supersedes several older numbers (BMW moved these mounts from group 11-81 to 22-11 over the years). If your old part is stamped 11811092583, 11811140985, 22111095444, or 22116771361, it's the same mount, just an earlier number.
- M3 owners: catalogs disagree here. The M-specific mount (11 81 2 283 798) is stiffer than the non-M mount, but some general listings cross-reference the non-M 22 11 6 779 970 onto the M3. Confirm yours by VIN on RealOEM (Group 22, engine suspension) before you order, rather than trusting a keyword match.
Part numbers come from the OEM parts catalogs, not the factory manual, which lists none. We web-cross-verify them before publishing, but a VIN check is always the last word.
Before You Start
Work on a cold engine. You'll be reaching near the exhaust manifold, and the whole job is easier when nothing's hot.
The safety-critical part of this job is supporting the engine. Raise and support the car on jack stands at the factory chassis jacking points only, never under a suspension arm. Once the car's up, you support the engine's weight from above or below before you unbolt a single mount. Get this wrong and the engine drops on you.
A word on where the numbers come from. The torque specs here are from the Bentley E36 manual, which covers the mounts inside its oil-pan and engine-removal procedures rather than as a standalone job. The manual is honest-to-a-fault inconsistent on one figure: it lists the mount nut as 42 Nm in the oil-pan chapter and 45 Nm in the engine-removal chapter for the exact same nut. We'll use 45 Nm as the working value and tell you where the 42 comes from.
What You're Replacing
| Part | Part number | Notes |
|---|---|---|
| Engine mount (x2) | See Identify Your Engine above | Hydraulic, symmetric (one PN fits either side), replace as a pair |
| Mount stud nuts | 22 11 6 779 973 | Single-use self-locking flange nuts, replace them, don't reuse |
| Heat shield (right side) | 51 48 8 173 388 | The exhaust-side mount carries this shield; transfer it to the new mount. Pre-09/1994 cars use 51 48 8 135 098 |
What You'll Need
| Tool | For |
|---|---|
| Engine support bar, or floor jack + wood block | Taking the weight off the mounts (from above or below) |
| 16mm thin-wall 6-point socket + wrench | The mount nuts. A thick impact socket often won't seat in the mount recess |
| Deep socket + extension and swivel | Reaching the upper (engine-bay) nut |
| Torque wrench | Final torque on the mount nuts |
| Jack and jack stands | Car up, supported on chassis points only |
The mount nut is an M10 thread and takes a 16mm socket. A few cars are reported to use 17mm on some nuts, so check yours before you buy.
Step 1: Lift, Support, and Get Access
Chock the wheels, raise the car, and set it on jack stands at the factory chassis points. Remove the engine splash shield (belly pan) if your car has one so you can reach the lower mount nuts from below.
Step 2: Support the Engine and Unload the Mounts
Now take the weight off the mounts. Two ways to do it:
- From above: an engine support bar laid across the strut towers / inner fenders, hooked to the front engine lifting point.
- From below: a floor jack with a block of wood under a corner of the oil pan.
CAUTION: The oil pan is not a structural part. If you support from below, use a wood block to spread the load on a corner of the pan and be gentle, don't jack against the thin center of the pan.
Raise the engine only about 5 mm (a quarter inch), just until its weight is supported and the mounts are unloaded. You're not lifting the engine out, just taking the tension off the nuts.
Work one side at a time. Loosen but do not remove the nut on the opposite mount, so the engine can tilt and rise enough on the side you're working without fighting the far mount. The oil pan sits slightly toward the driver's side, so a centered jack tends to lift the driver's side first: do that mount, then re-jack to bring the passenger side up.
Step 3: Remove Both Mount Nuts
Here's the fix for the mistake that traps people: the mount is held by two nuts, and you have to remove both.
- The upper nut, up in the engine bay, holds the mount's top stud to the engine bracket. On the left it hides behind the power-steering hose past the steering shaft; on the right it's near the ignition coils and the exhaust manifold. Reach it with a deep socket, an extension, and a swivel.
- The lower nut, underneath, holds the mount to the subframe crossmember. On the driver's side the steering linkage crowds it, so come at the nut from outboard of the control arm.
Remove only the lower nut and the mount stays captured in the engine-bay bracket, which is exactly why the engine "won't lift enough to free the mount" in so many write-ups.
On the right (exhaust) side, note the engine-to-body ground strap on the mount stud and set it aside, it goes back on reassembly. Miss it and you'll chase electrical gremlins later.
Step 4: Withdraw the Old Mount, Transfer the Heat Shield, Fit the New
With both nuts off, raise the engine on your support just a little more until the upper stud clears the engine bracket, then work the old mount out from between the bracket and the subframe.
On the right side, the old mount carries a heat shield that protects it from exhaust heat. Transfer that shield to the new mount, it's there for a reason, and a bare hydraulic mount next to the exhaust manifold cooks and fails early. The shield has a locating pin, so it only fits one way, facing the exhaust.
Set the new mount in place with its top stud started into the engine bracket. The mount has a locating pin on its base that indexes it correctly: the same part goes on either side, but orient the pin the right way for that side so it isn't installed backward, then lower the engine onto it.
Step 5: Settle, Torque, and Reconnect
This is the step that makes the job last. Lower the engine and let it settle fully onto both new mounts before you tighten anything. If you torque the nuts while the engine is still hanging on the support, the rubber sits preloaded and tears out early.
With the engine resting on the mounts, fit new self-locking nuts and torque them to 45 Nm (33 ft-lb).
NOTE: The Bentley manual lists this same nut at 42 Nm (31 ft-lb) in its oil-pan chapter and 45 Nm (33 ft-lb) in its engine-removal chapter. We use 45 Nm to match the engine-work chapter and the common mount-replacement DIYs; anywhere in the 42 to 45 Nm range is within tolerance for this nut. If your car uses the smaller M8 stud nut instead, that one is 22 Nm (16 ft-lb).
Reattach the right-side ground strap to its stud.
Step 6: Reassemble and Test
Refit the splash shield, remove the engine support, and lower the car. Start it and let it idle, the clunk and the idle shake should be gone. Blip the throttle in neutral and watch the engine: the movement should be tight and controlled instead of the old flop.
Advanced: If You Drop the Subframe
You do not need to drop the subframe for a normal in-car mount swap, everything above is done with the crossmember in place. This section is only for people who are lowering the subframe for other reasons and want the related torque figures while they're in there.
WARNING: The subframe (front axle carrier) bolts are one-time-use. Fit new bolts every time you drop and reinstall the subframe, and have the front end aligned afterward. Do not unbolt the power-steering rack from the crossmember while dropping it, leaving it attached avoids disturbing the steering geometry.
| Fastener (subframe-drop path only) | Torque |
|---|---|
| Control-arm bushing carrier to body (M10) | 47 Nm (34 ft-lb) |
| Subframe to body (M12), grade 8.8 bolts | 77 Nm (56 ft-lb) |
| Subframe to body (M12), grade 10.9 bolts | 110 Nm (81 ft-lb) |
| Subframe to body (M12), grade 12.9 bolts | 105 Nm (77 ft-lb) |
| Steering column U-joint to rack (M8) | 19 Nm (14 ft-lb) |
Read the grade stamped on the head of each M12 subframe bolt and use the matching number. The grade-12.9 bolt is spec'd slightly lower than the 10.9, that's correct, not a typo. Use new self-locking nuts on the steering U-joint.
Reinforced and Aftermarket Mounts
Polyurethane and aluminum mounts are stiffer than OEM and hold the engine more tightly, which some people want for a sharper feel. Fair trade-offs to know: they transmit noticeably more vibration and noise into the cabin, they load the E36's subframe mounting area harder, and they use their own lower torque figures (product-specific, often around 41 to 42 Nm, not the OEM number). Treat them as an informed choice for a track-leaning car, not a default upgrade.
Troubleshooting
Still feel vibration after the swap. If the mounts are new but the shake remains, the transmission mount is the next suspect, a sagging engine usually takes the trans mount with it.
The new mount sits crooked or preloaded. You torqued the nuts before the engine settled. Loosen them, let the engine rest fully on the mounts, and re-torque.
A new clunk under braking or acceleration. Check the front control-arm bushings and their carriers, you were working right next to them, and worn bushings give a similar clunk that's easy to confuse with mounts.
A fresh film of fluid under a new-ish mount. That's a hydraulic mount that has already let go, or damage from install. A weeping mount confirms the diagnosis, replace it.
Ground strap forgotten. Left the right-side ground off and you may pick up odd electrical faults. Put it back on its stud.
Companion Job and Wrap-Up
The transmission mount is the natural companion to this job, a sagging engine wears it too, and you're already set up underneath. Do it while you're there if it's tired.
Solid mounts, no clunk, and a drivetrain that feels bolted down instead of floating. While you were under there you got a free look at the subframe and control arms, so note anything that looked tired for next time. For every fastener spec on the car, see our BMW E36 Torque Specifications guide.
